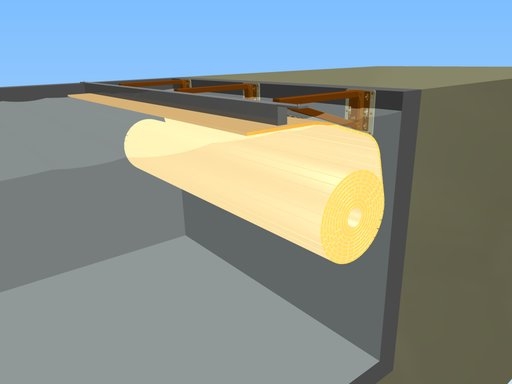

Recess 1

  • Execution Roller mounted directly below the waterline
  • Application Renovation and retrofit in existing pools
  • Maximum dimensions 25 m × 50 m (larger configurations possible depending on the shape and structural design of the pool)
  • Drive with motor shaft Electric control
  • Drive without motor shaft Tube motor (applicable within the technical limits of pool width and water depth)
  • Installation guidelines Installation permitted only in private pools in accordance with relevant standards and safety regulations
View Recess-1 specs
recess-2-underwater-motor-control-system-SwimSafe

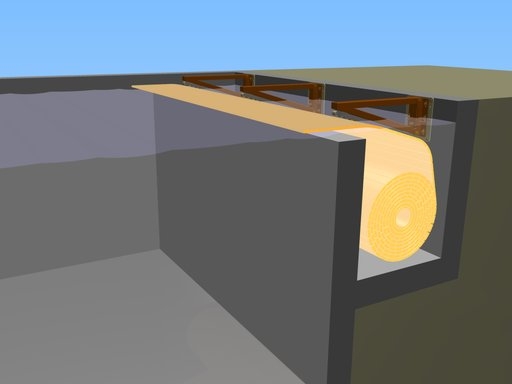

Recess 2

  • Execution The roller is mounted in a separate shaft behind the pool.
  • Application For new construction and renovation in existing pools
  • Maximum dimensions 25 m × 50 m (larger configurations possible depending on the shape and structural design of the pool)
  • Drive with motor shaft Electric control
  • Drive without motor shaft Tube motor and/or shaft motor (applicable within the technical limits of width and depth)
  • Installation guidelines Installation permitted only in private pools in accordance with relevant standards and safety regulations
View Recess-2 specs
recess-4-underwater-motor-control-system-SwimSafe

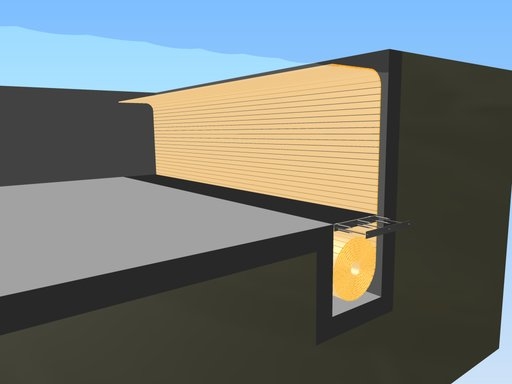

Recess 4

  • Execution Roll-up system mounted in a recess beneath the pool floor
  • Application Only possible in new pool construction
  • Maximum dimensions 25 m × 50 m (larger configurations possible depending on the shape and structural design of the pool)
  • Drive with motor shaft Electric control
  • Drive without motor shaft Tube or shaft motor (limited applicability depending on pool width and depth)
  • Installation guidelines Installation permitted only in private pools in accordance with relevant standards and safety regulations
View Recess-4 specs
recess-5-underwater-motor-control-system-SwimSafe

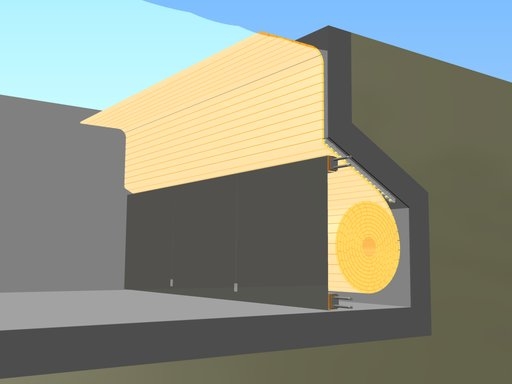

Recess 5

  • Execution Roll-up system integrated into the pool wall with front panel finishing
  • Application Only for new pool construction
  • Maximum dimensions 25 m × 50 m (larger configurations possible depending on the shape and structural design of the pool)
  • Drive with motor shaft Electric control
  • Drive without motor shaft Tube or shaft motor (limited applicability depending on the pool’s width and depth)
  • Installation guidelines Installation permitted only in private pools in accordance with relevant standards and safety regulations
View Recess-5 specs
recess-6-underwater-motor-control-system-SwimSafe

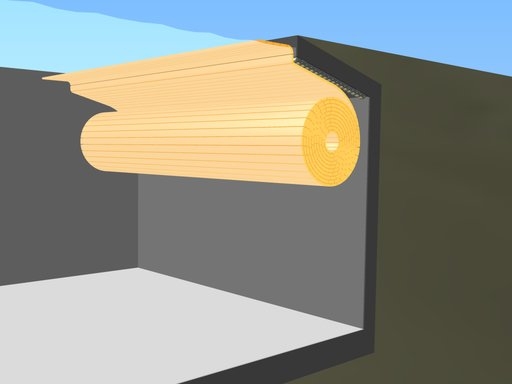

Recess 6

  • Execution Roll-up system mounted just below the water surface
  • Application Suitable for both new pool construction and installation in existing pools
  • Maximum dimensions 25 m × 50 m (larger configurations possible depending on the shape and structural design of the pool)
  • Drive with motor shaft Electric control
  • Drive without motor shaft Tube or shaft motor (limited applicability depending on the pool’s width and depth)
  • Installation guidelines Installation permitted only in private pools in accordance with relevant standards and safety regulations
View Recess-6 specs
recess-7-underwater-motor-control-system-SwimSafe

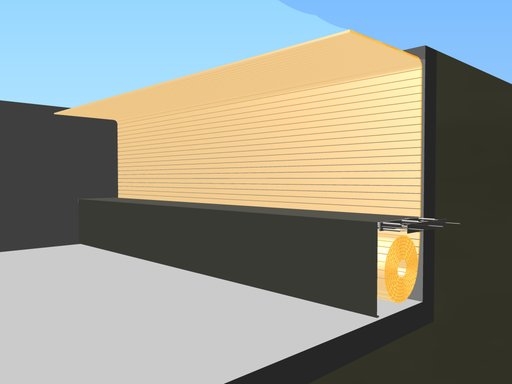

Recess 7

  • Execution Above the pool structure
  • Application Renovation and retrofit in existing pools
  • Maximum dimensions 25 m × 50 m (larger configurations possible depending on the shape and structural design of the pool)
  • Drive with motor shaft Electric control
  • Drive without motor shaft Tube motor (applicable within the technical limits of pool width and water depth)
  • Installation guidelines Installation permitted only in private pools in accordance with relevant standards and safety regulations
View Recess-7 specs
recess-8-underwater-motor-control-system-SwimSafe

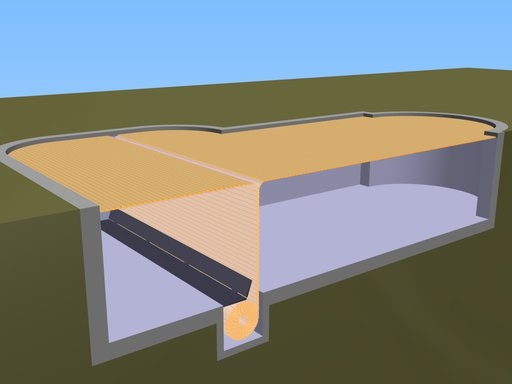

Recess 8

  • Execution Roll-up system mounted beneath the pool floor with a winding shaft for two cover sections
  • Application Suitable for free-form pools and pools with complex contours
  • Maximum dimensions 25 m × 50 m (larger configurations possible depending on the shape)
  • Drive with motor shaft Electric control
  • Drive without motor shaft Compatible with both shaft motors and tube motors
  • Installation guidelines Suitable for both private and public swimming pools (provided that requirements such as gap dimensions and safety standards are met)
View Recess-8 specs
recess-9-underwater-motor-control-system-SwimSafe

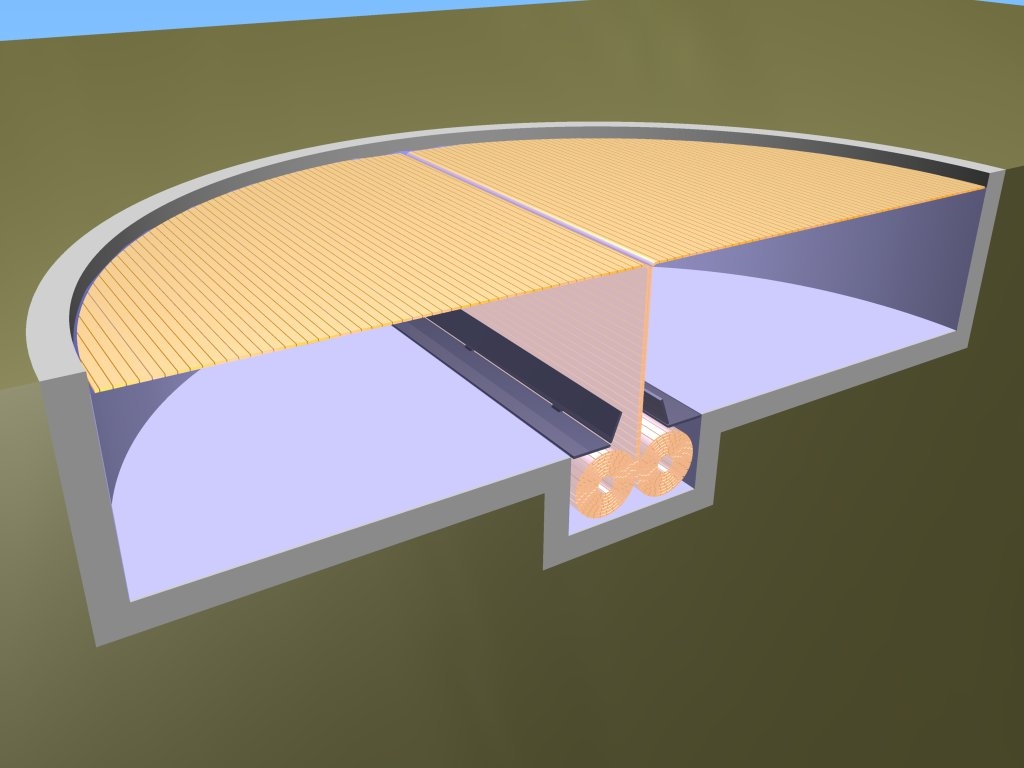

Recess 9

  • Execution Roll-up system installed beneath the pool floor with two shafts, suitable for two covers, including an automatic shaft lid.
  • Application Only for new pool construction
  • Maximum dimensions 25 m × 50 m (larger configurations possible depending on the shape and structural design of the pool)
  • Drive with motor shaft Electric control
  • Drive without motor shaft Tube motor or shaft motor (limited applicability depending on the pool’s width and depth)
  • Installation guidelines Suitable for both private and public swimming pools
View Recess-9 specs

Underground systems for swimming pools

For underwater installation, Swim Safe uses a motor of its own design that is 100% waterproof and runs trouble-free under water for years. The motor, tube and suspension are made of high-quality stainless steel; the tubular motors are available in two torque ratings: 180 Nm and 450 Nm. The Retro shaft motors of 185, 250, 600 and 1000 Nm can also be used.

Thanks to the smart installation options, the motor and slat cover can be almost invisibly concealed in the wall or on the pool floor, providing a sleek and elegant finish. This solution is suitable for a variety of pool types, including thin-walled, stainless steel, Styrofoam and polystyrene pools, ideal when design and technology need to be perfectly balanced.

Fully waterproof motor

High-quality stainless steel construction

Aesthetically invisible installation

Broadly applicable

Material

Swim Safe slatted deck plastics

SwimSafe has 2 types of plastics – PVC (Polyvinyl chloride) and PC (Polycarbonate), the most complex being the PC – (TRI) – extrusion profiles. Choosing the right slats for your pool depends on many factors.

Other options

Contact

Want to discuss your wishes and ideas?

Choose an automatic safety cover for your pool. We recommend choosing a sturdy system integrated into a niche or the pool itself.
